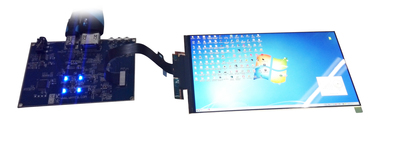

點擊圖片查看原圖
LH600QH1-SD01 基本參數 |
|
|---|---|
| 制造商(Productor) | LG/LG Display |
| 產品型號(MODEL) | LH600QH1-SD01 |
| 屏尺寸(Size) | |
| 分辨率(Resolution) | 1440×2560 |
| 分辨率簡稱(Resolution Name) | Quad-HD |
| 顯示比例(Display scale) | 9:16 |
| 像素排列(Pixel Arrangement) | RGB垂直條狀 |
| 點距(Pixel Pitch) | 0.01725×0.05175 mm |
| 產品組成(Panel Composition) | 液晶屏, |
| 面板類型(Technology) | LTPS TFT-LCD |
| 主要用途(Applications) | 【手機】, |
| 顯著特征(Panel Features) | 【廣視角】, 【白光LED】, |
LH600QH1-SD01光電參數 |
|
| 顯示模式(Display mode) | IPS，常黑顯示，透射式 |
| 亮度(Luminance) | 450 nits |
| 對比度(Contrast Ratio) | 1100:1 |
| 顏色(Color) | 16.7M |
| 色彩飽和度(Color Saturation) | 70%NTSC(CIE1931) |
| 響應時間(Response) | 25 ms |
| 可視角度(Viewing Angle) | 85/85/85/85(上/下/左/右) |
| 最佳視角(The Best View) | 上下左右對稱 |
| 白場色度(White Field Chroma) | X:0.300; Y:0.320 |
| 信號類型大類(The kind of Singnal) | MIPI |
| 接口類型(Interface) | MIPI |
| 信號接口類型(Kind of Singnal Interface) | 包含在屏信號接口中 |
| 信號接口品牌(Brand of Singnal Interface) | Panasonic |
| 信號接口型號(Model of Singnal Interface) | AXE650124 |
| 信號接口腳距(Pitch of Singnal Interface) | 0.4 mm |
| 信號接口腳數(Pin of Singnal Interface) | 50 pins |
LH600QH1-SD01結構參數 |
|
| 工作溫度(Operation Temperature) | -20 °C ~ 55 °C |
| 存儲溫度(Storage Temperature) | -30°C ~ 80°C |
| 表面處理(Surface Technology) | Hard coating |
| 顯示區域(Active Area) | 74.52×132.48 mm |
| 外形尺寸(Outline) | 76.72× 139.28×1.25 mm |
| 燈管位置(Lamp Position) | 側入式光源 |
| 背光類型(Backlight) | WLED |
| 燈管數量(Lamp Number) | 8S2P pcs |
| 燈管形狀(Lamp Shape) | 2串 |
| 單一燈管電壓(Voltage of Lamp) | 23.2V |
| 單一燈管電流(Current of Lamp) | 20mA |
| 內置燈管驅動器(Driver of Backlight) | 無 |
| 背光接口類型(Kind of Backlight Interface) | 包含在屏信號接口中 |
| 背光接口品牌(Brand of Backlight Interface) | Panasonic |
| 背光接口型號(Model of Backlight Interface) | AXE650124 |
| 背光接口數量(Quantity of Backlight Interface) | 1 pcs |
| 背光接口腳距(Pitch of Backlight Interface) | 0.4 mm mm |
